Scanning Multiple Originals at One Time

You can scan two or more photos (small items) placed on the platen at one time and save each image individually.

Important

  • The following types of items may not be scanned correctly. In that case, adjust the cropping frames (scan areas) in whole image view of ScanGear (scanner driver), and then scan again.

    • Photos with a whitish background
    • Items printed on white paper, hand-written text, business cards, and other unclear items
    • Thin items
    • Thick items

    Refer to "Scanning Multiple Documents at One Time with ScanGear (Scanner Driver)" for your model from Home of the Online Manual for details.

Note

  • The screens for scanning with favorite settings are used as examples in the following descriptions.

  1. Place the item on the platen.

  2. Start IJ Scan Utility.

  3. Click Settings....

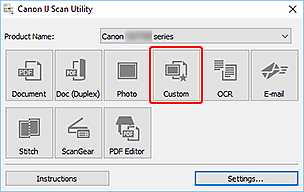

    figure: IJ Scan Utility

    The Settings dialog box appears.

  4. Click Custom Scan.

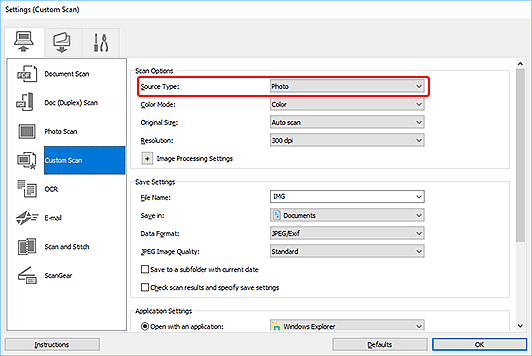

    figure: Settings dialog box

  5. Select Source Type according to the items to be scanned.

    figure: Settings dialog box

  6. Select Auto scan for Original Size, then click OK.

    figure: Settings dialog box

    The IJ Scan Utility main screen appears.

    Note

    • Once settings are made in the Settings dialog box, the same settings can be used for scanning from the next time.
    • In the Settings dialog box, specify image processing settings such as slant correction, set where to save the scanned images, and more, as needed.

  7. Click Custom.

    figure: IJ Scan Utility

    Multiple items are scanned at one time.

Note

  • To cancel the scan, click Cancel.
